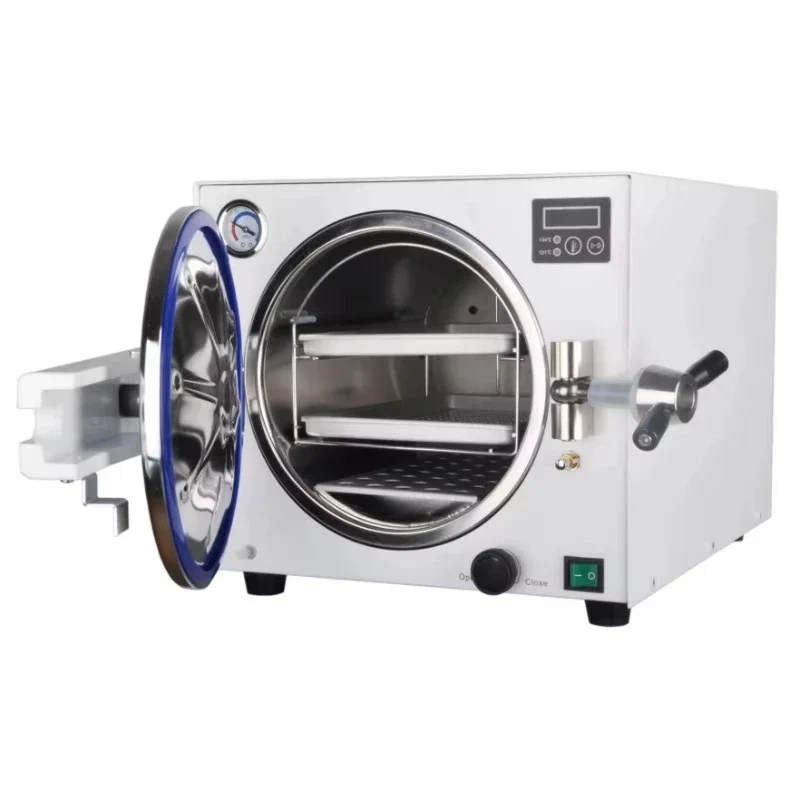

18L Dental Steam Autoclave Sterilizer Commercial Electric Stainless Steel English Interface

Multi-Purpose Sterilizer
Applicable to: Dentistry, Tattoo, Beauty, Ophthalmology, Acupuncture, Laboratory, etc.



Safety
Alarm indicators: Overtemperature, Dry-heating warning
Equipped with pressure relief safety valve

High Temperature
Two adjustable temperature settings:
121°C and 134°C

High Pressure

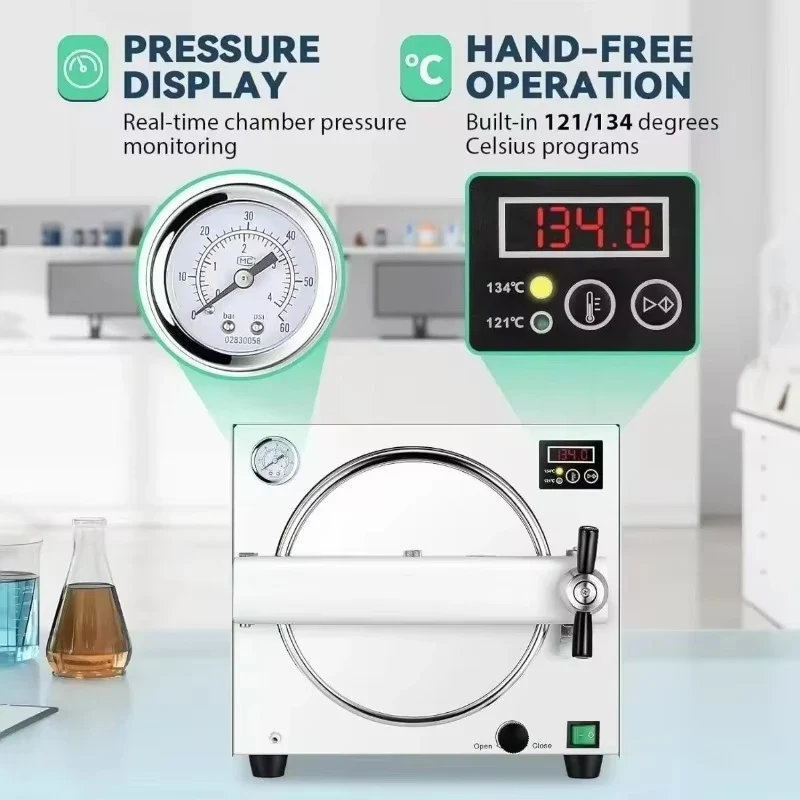

Visual pressure monitoring



Main Technical Parameters of the Sterilizer
Chamber dimensions: Φ230×360 mm
External dimensions: (L) 560 × (W) 365 × (H) 315 mm
Power supply: AC220V / 1100W
Sterilization temperature: 121°C / 134°C
Sterilization time: 30 minutes (121°C) / 10 minutes (134°C)
Accessories: 1 instrument rack, 1 instrument tray holder, 2 instrument trays, 1 drain hose



Operating Instructions for the Sterilizer
Step 1: Pour distilled water into the chamber until the water level is slightly below the water baffle.

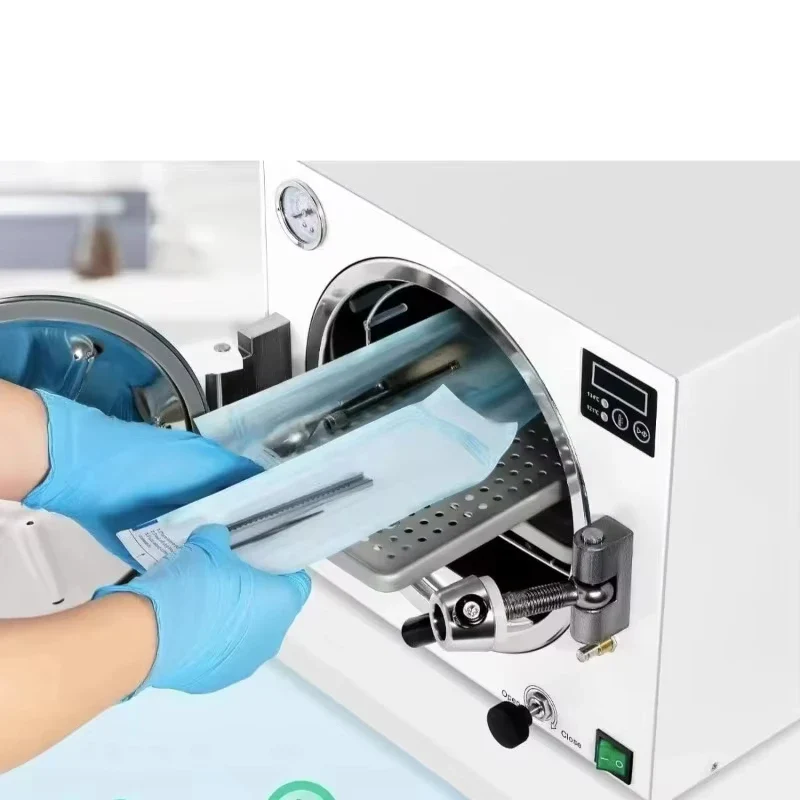

Step 2: Place the items to be sterilized onto the instrument tray.
Step 3: Turn the exhaust valve to the right to close it.
Step 4: Turn on the power switch. If the door is open, "Ld" will be displayed on the screen.
Step 5: Select the sterilization temperature (121°C or 134°C).
Step 6: Close the door and turn the door handle to the rightmost position. The screen will display the current internal chamber temperature.
Step 7: Press the start button.
Step 8: After sterilization is complete, a buzzer will sound, and "End" will be displayed on the screen. The door can now be opened to remove the sterilized items.
