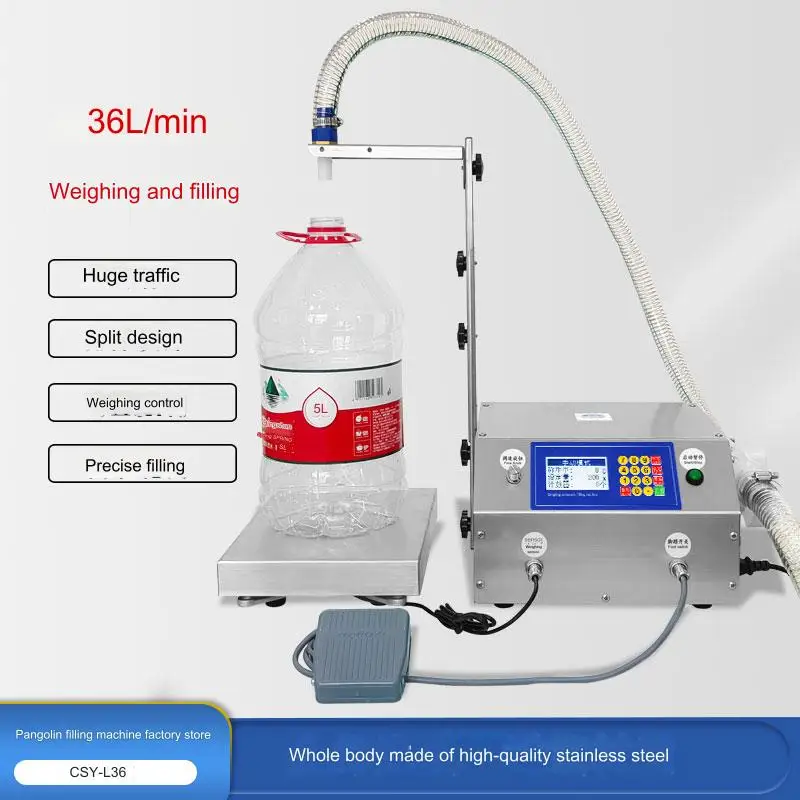

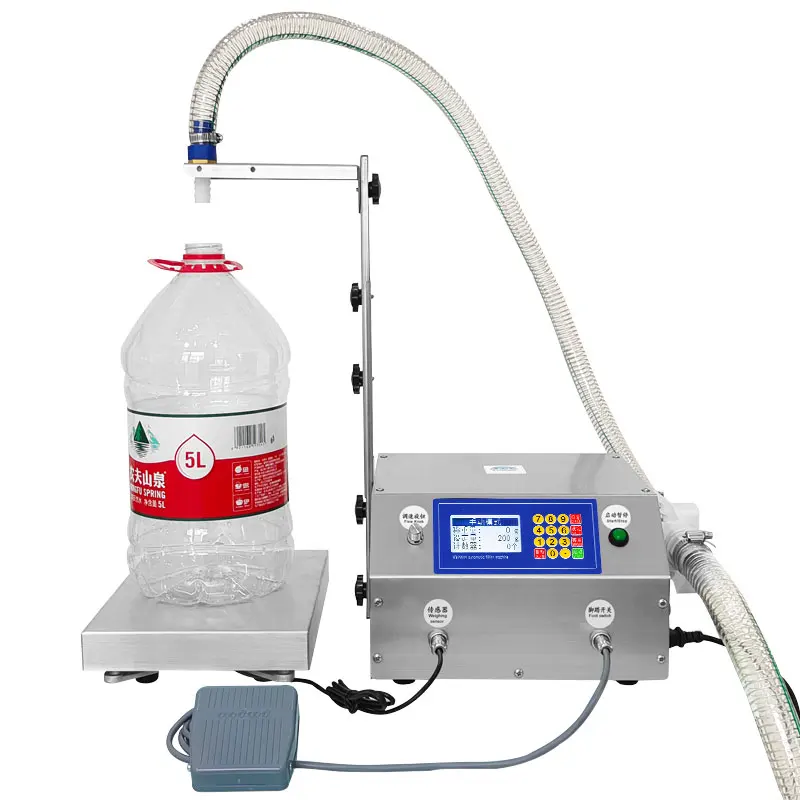

CSY-L36 Large Flow Weighing Type Fully Automatic Quantitative Liquid Laundry Liquid Edible Oil Filling Machine

Product Highlights

1. High-Speed Filling

   • Achieves a maximum flow rate of 36L/min, ideal for large-scale production.
   • Suitable for a wide range of liquids, from low-viscosity cleaning solutions to high-viscosity edible oils.

2. Multiple Filling Modes

   • Weighing Mode: Precisely controls the filling volume with an error margin ≤5g, perfect for high-precision production.
   • Timed Mode: Flexible adjustment of filling time, suitable for various container sizes.

3. Intelligent Operation

   • Features automatic tare, auto-start/stop, and speed reduction for efficient and safe operation.
   • Includes power-off memory and adjustable delay start, reducing downtime during operation.

4. Flexible Design

   • Switch between split-type and integrated installations to suit different filling scenarios.
   • Adjustable filling height (0-40cm), supporting containers ranging from 50g to 30kg.

5. Premium Materials and Craftsmanship

   • Made from food-grade stainless steel for corrosion resistance and easy cleaning.
   • Drip-proof design ensures a clean filling process without waste.

Applications and Use Cases

• Food & Beverage Industry: Soy sauce, vinegar, red wine, white spirits, fruit juice, and more.
• Daily Chemicals: Laundry detergent, glass cleaner, dishwashing liquid, and other viscous liquids.
• Industrial Applications: Lubricants, chemical solutions, and other industrial liquids.
• Retail & On-Site Sales: Supports weight or price-based filling, ideal for oil or beverage sales directly at the point of purchase.

Specifications

Parameter	Details
Model	CSY-L36
Rated Voltage	AC 220V 50Hz
Power Consumption	300W
Maximum Flow Rate	36L/min
Filling Range	50g-30Kg
Filling Error	≤5g
Filling Height	0-40cm adjustable
Machine Weight	12.5kg
Product Dimensions	26cm × 26cm × 15cm
Packaging Dimensions	35cm × 35cm × 35cm

Benefits

1. Versatile Applications

   • Compatible with various liquids, viscous products, and container types (bottles, bags, barrels).

2. User-Friendly Operation

   • Multi-level Chinese menu system with clear settings, supports both Chinese and English interfaces for global usability.

3. Space-Saving Design

   • Compact and lightweight, ideal for small to medium production lines.
