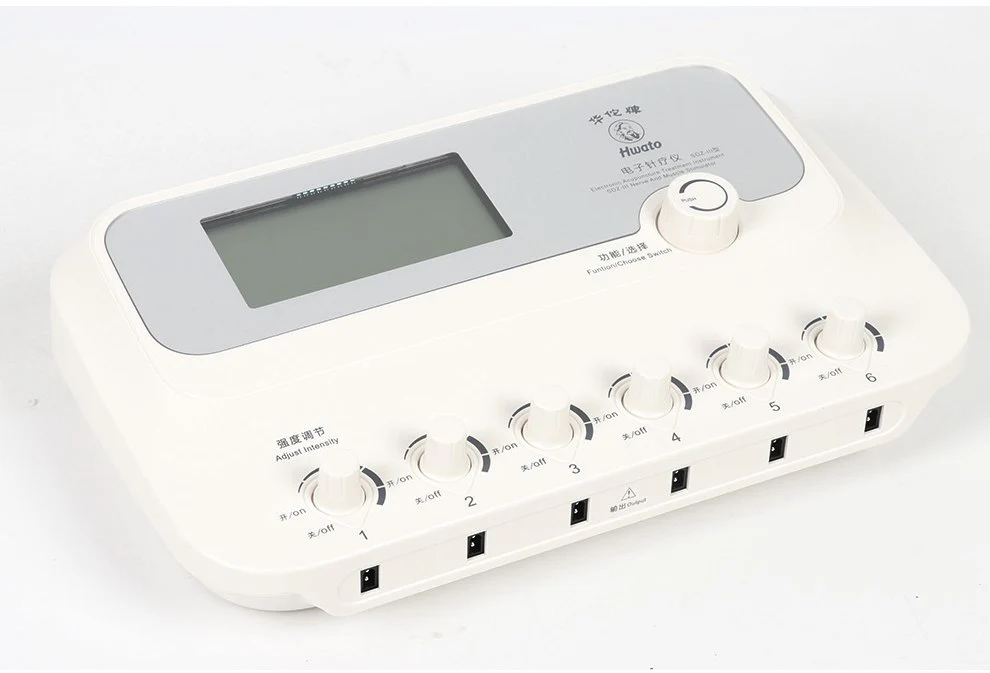

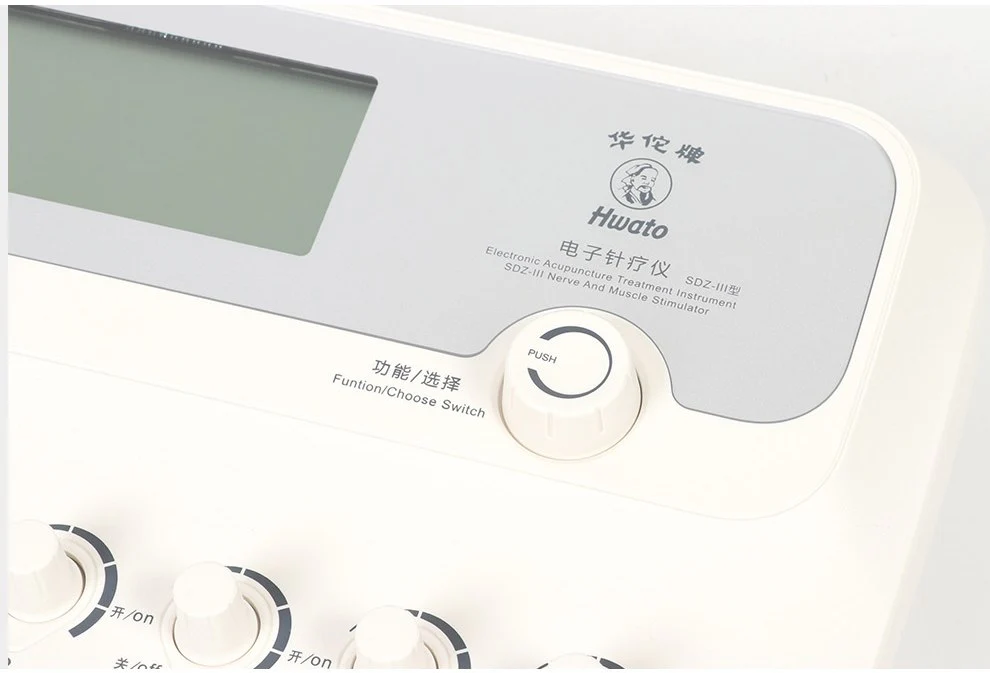

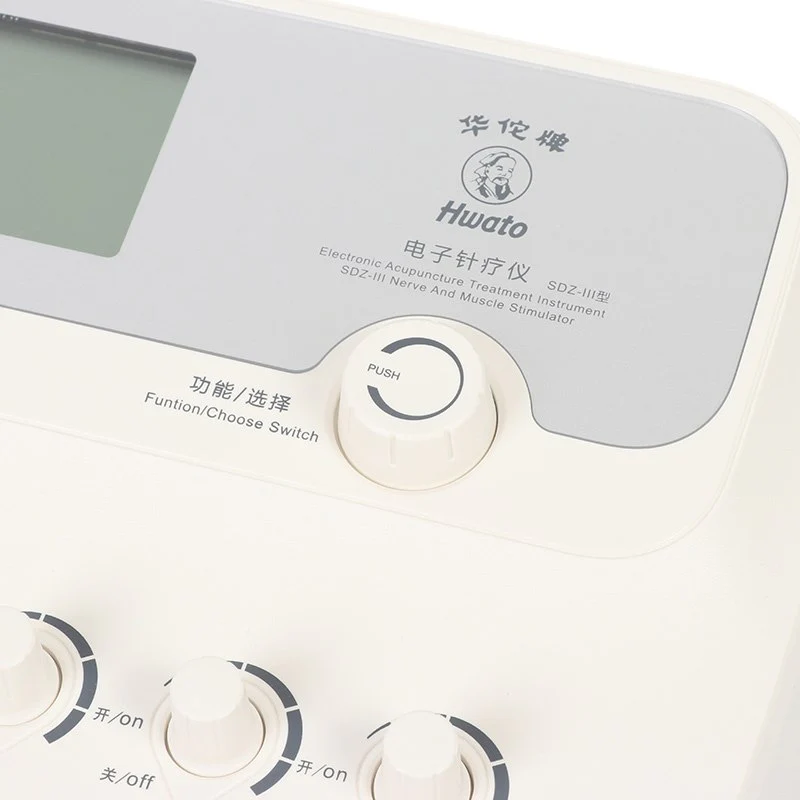

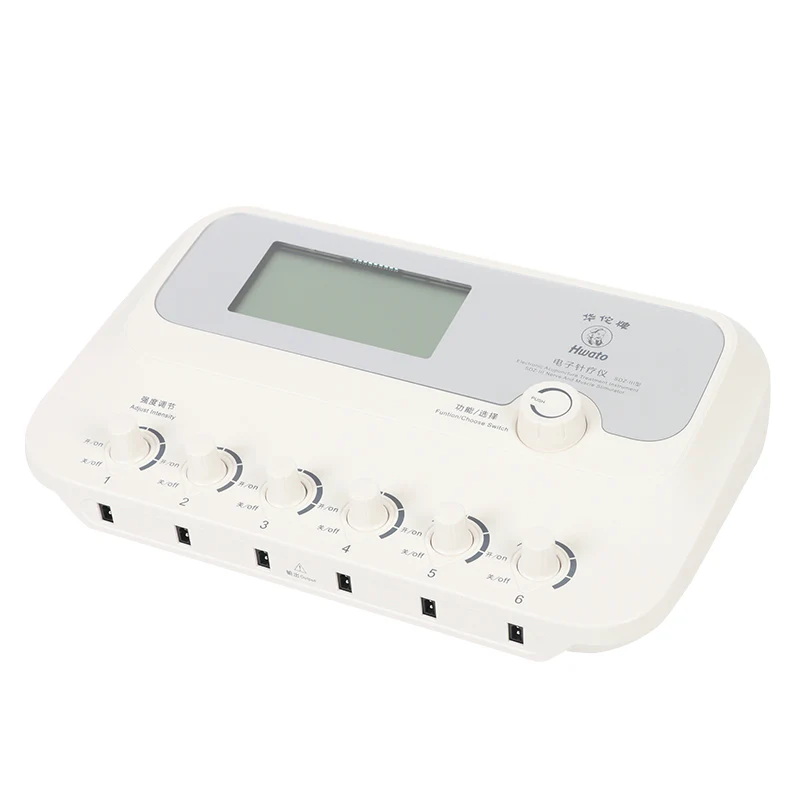

New Hwato SDZ-III Nerve Muscle Stimulator Computer Random Pulse 6 Channel Electro Acupuncture Therapeutic TENS EMS Massager

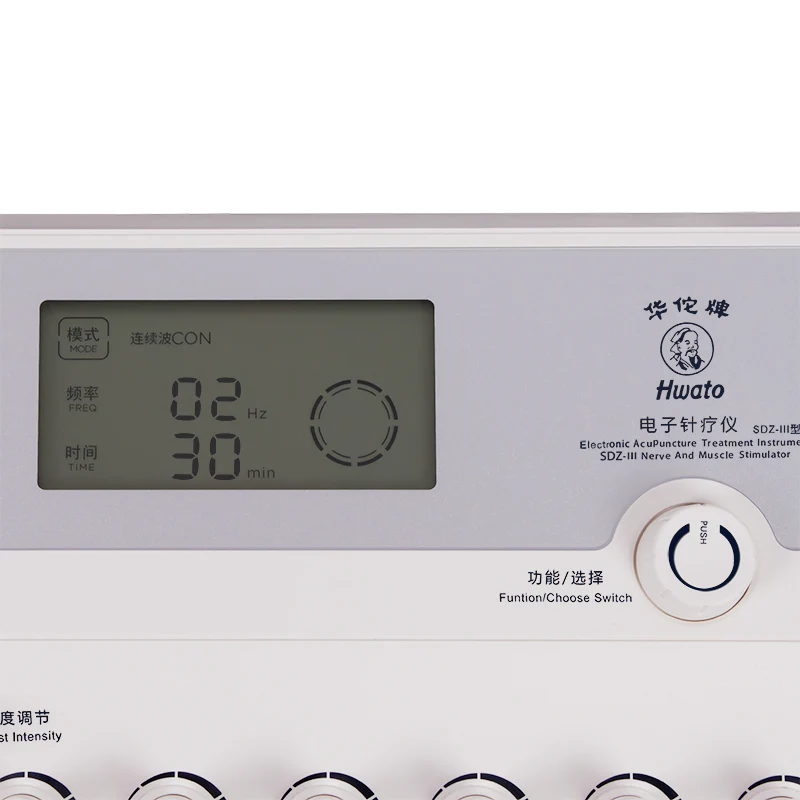

Large LCD display for easy viewing of mode, frequency, time, and output status information.
The last used parameter is automatically saved. Do not need to be set after booting up, start using it immediately.
Very energy-saving, when the output channel is off, there is no operation for 3 minutes and it automatically goes to sleep.
Digital control, accurate timing. 6 independent outputs, multi-acupoint use. traditional Chinese Acupuncture and meridian theory,based on the traditional SDZ series.

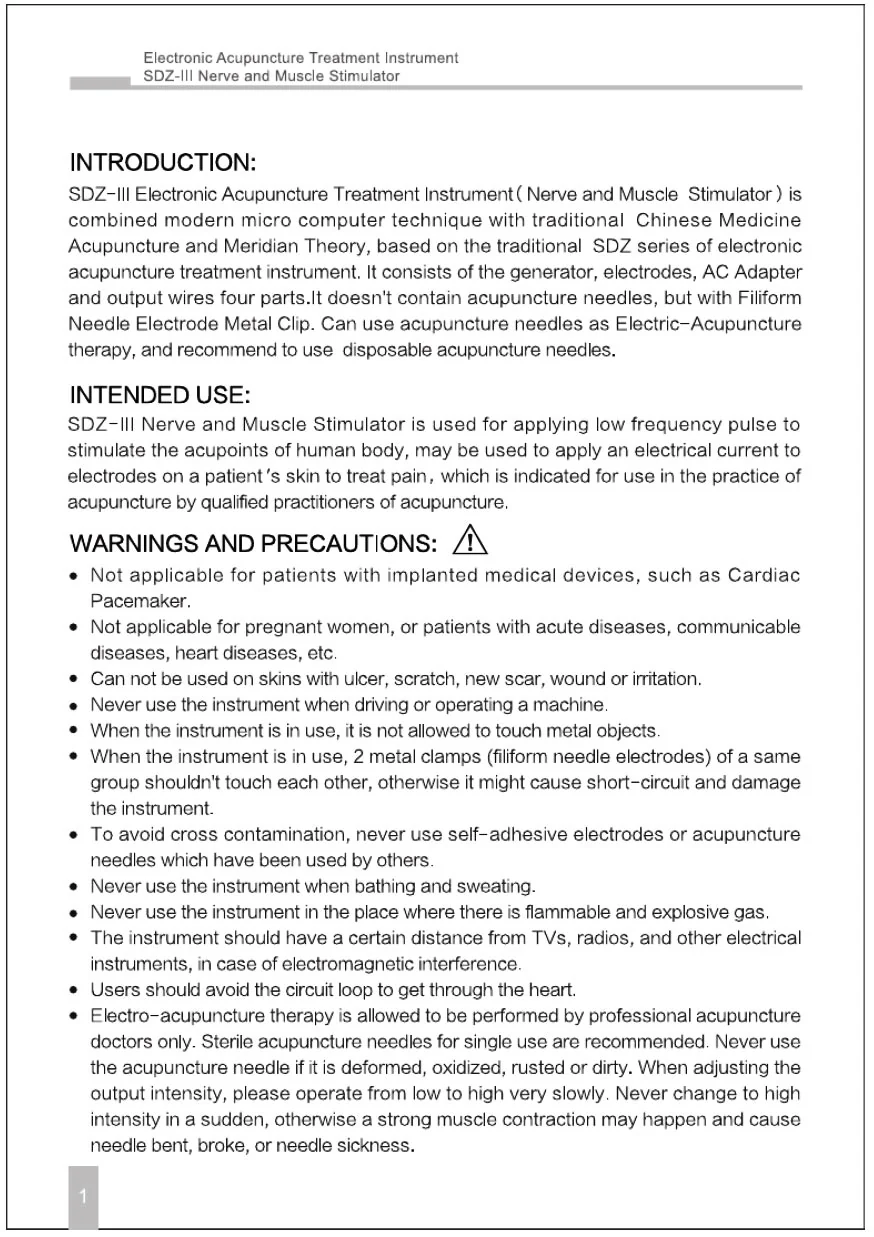

Introduction:
SDZ-III Nerve and Muscle Stimulator is combined modern microcomputer high-new technique with.
traditional Chinese Acupuncture and meridian theory,based on the traditional SDZ series of.
The product is used for applying low frequency pulse to stimulate the acupoints of human body.

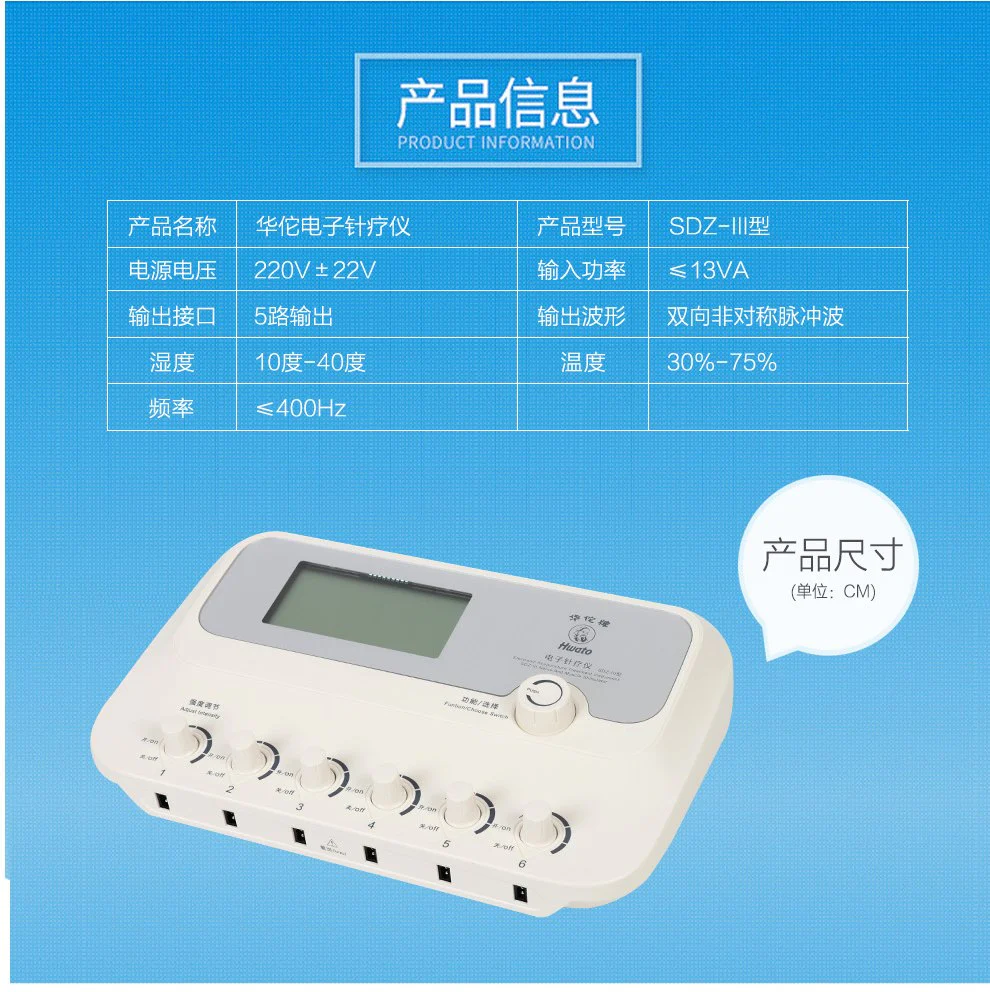

TECHNICAL SPECIFICATIONS:
Output Pulse Wave: un-symmetry bi-direction pulse wave .
Pulse Frequency: frequency adjustable in 1 - 100Hz, ± 15% tolerance.

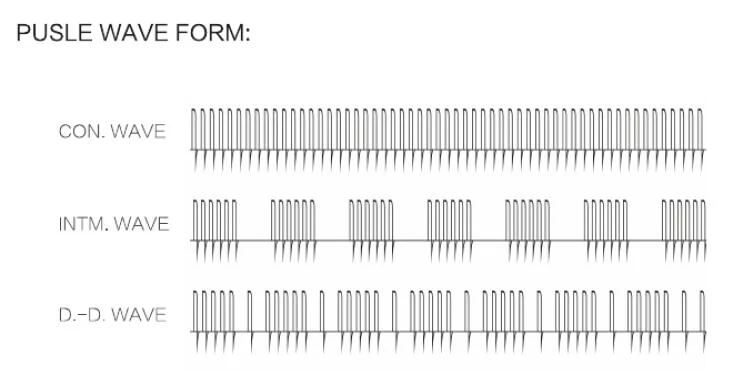

Output pulse frequency:
Continuous Wave: 1-100Hz adjustable continuously.
Intermittent Wave: Continuous Wave frequency 1-100Hz adjustable. continuously; interval time between Continuous Wave groups 5 sec, duration time of Continuous Wave 15 secretary.
Distant-dense Wave: frequency of distant wave is one fifth of the frequency of dense wave, frequency of dense wave is 5-100Hz adjustable, the duration time of distant wave 5sec, the duration time of dense wave 10 secretary.
Output Pulse width: 0.20ms ± 30% (EMC TEST).
Output current: ≤10mA (Load 250 Ω).

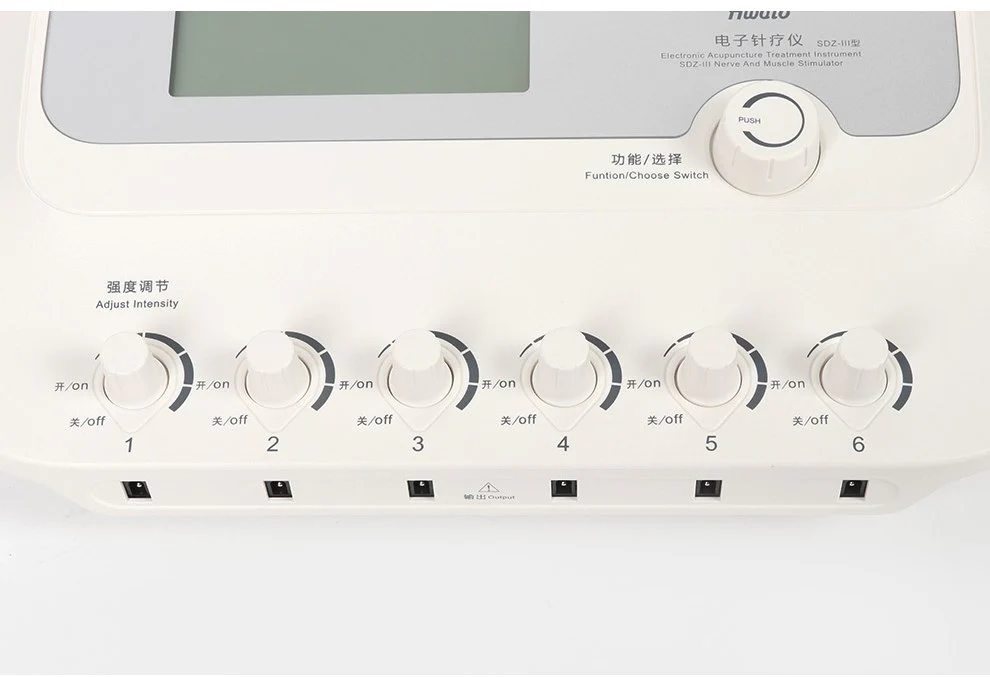

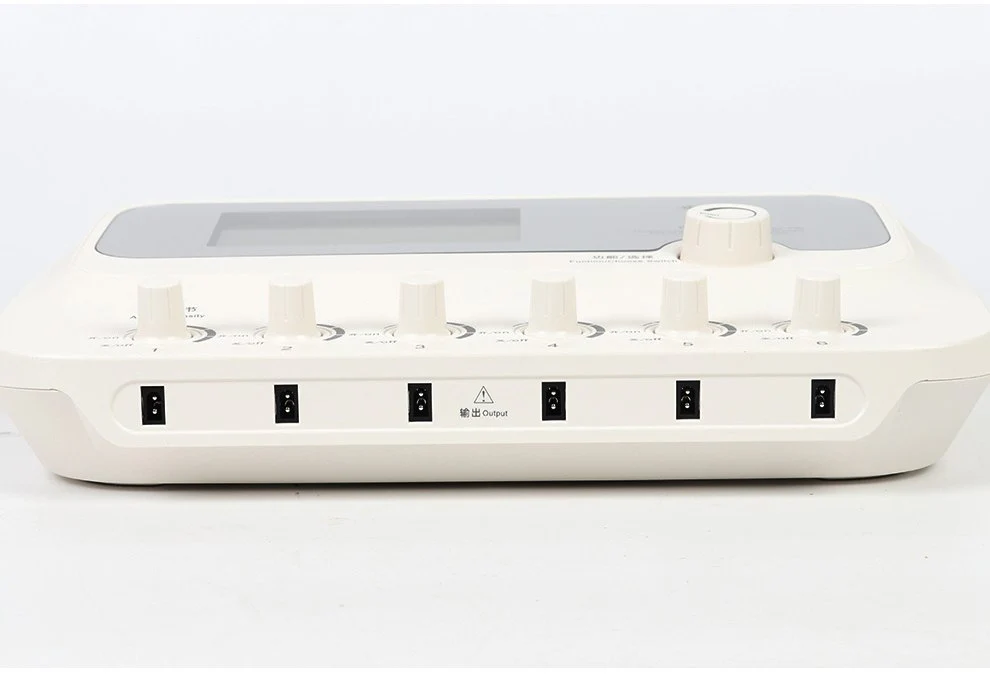

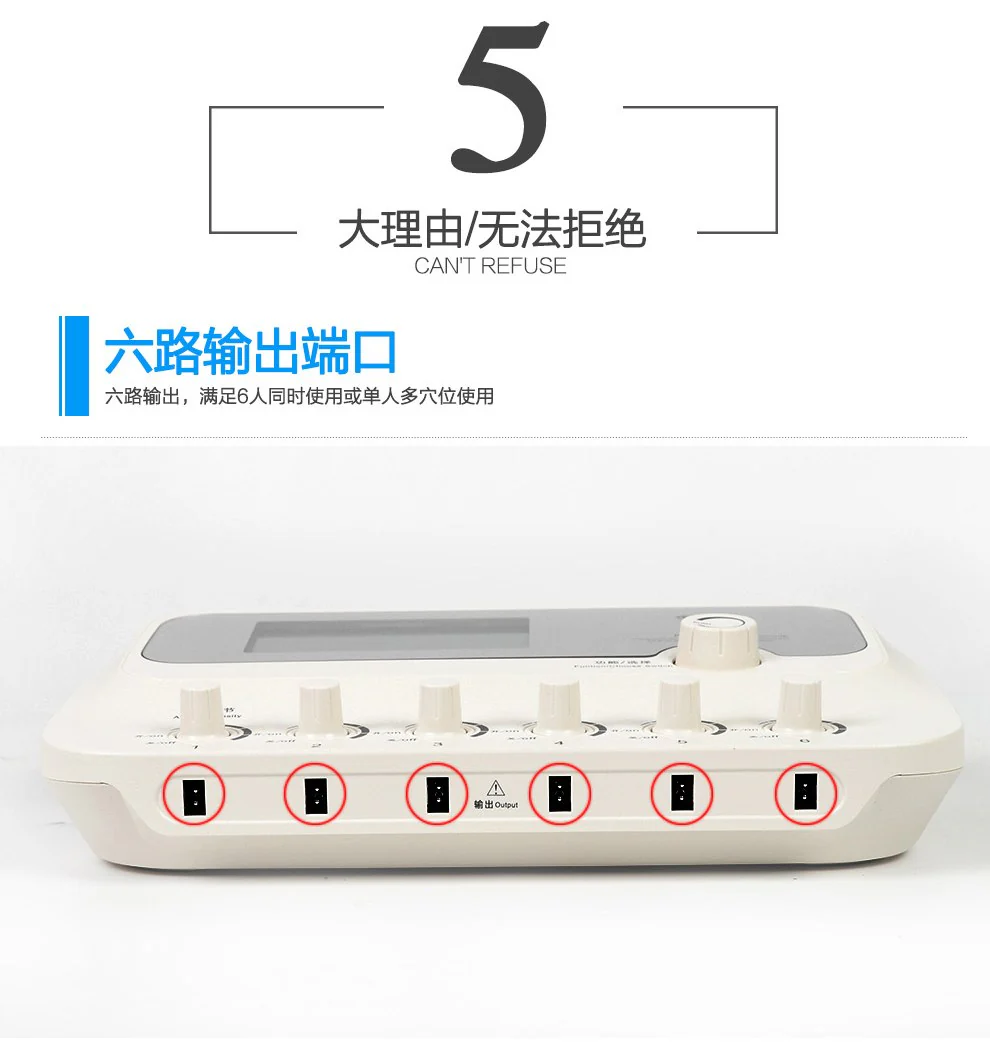

Output Pulse channel: 6 channels.
Power supply:

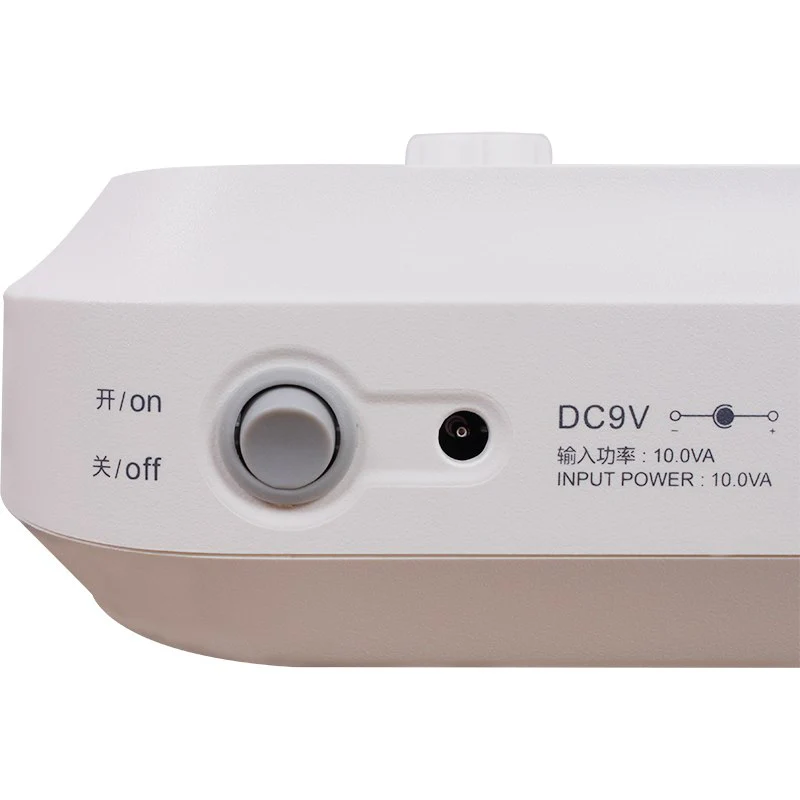

Power: DC9V :MInternal Electrical Power Source or AC Adapter (input AC220V 50Hz/AC110V 60Hz; output DC9V).
We will send the corresponding power plug and voltage according to your country.
Input power: 10VA.
Output power: 0.3VA (Load 250 Ω).
Volume: 210mm x 100mm x 300mm.

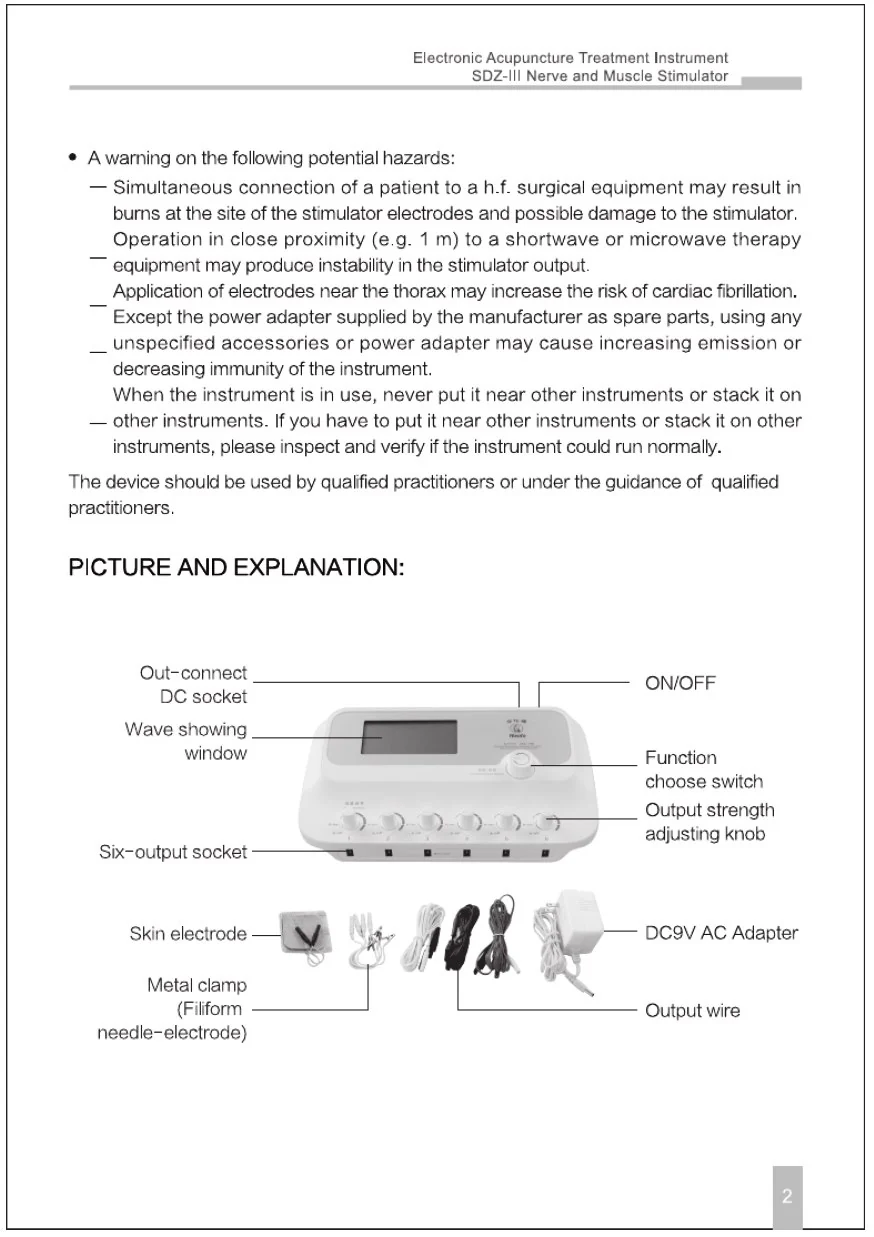

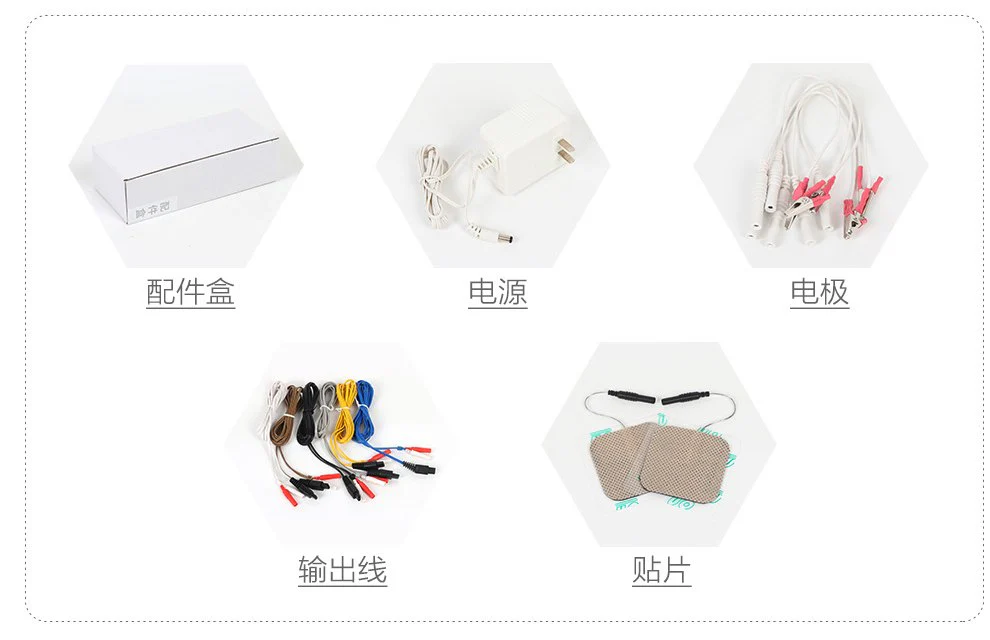

Packing list:

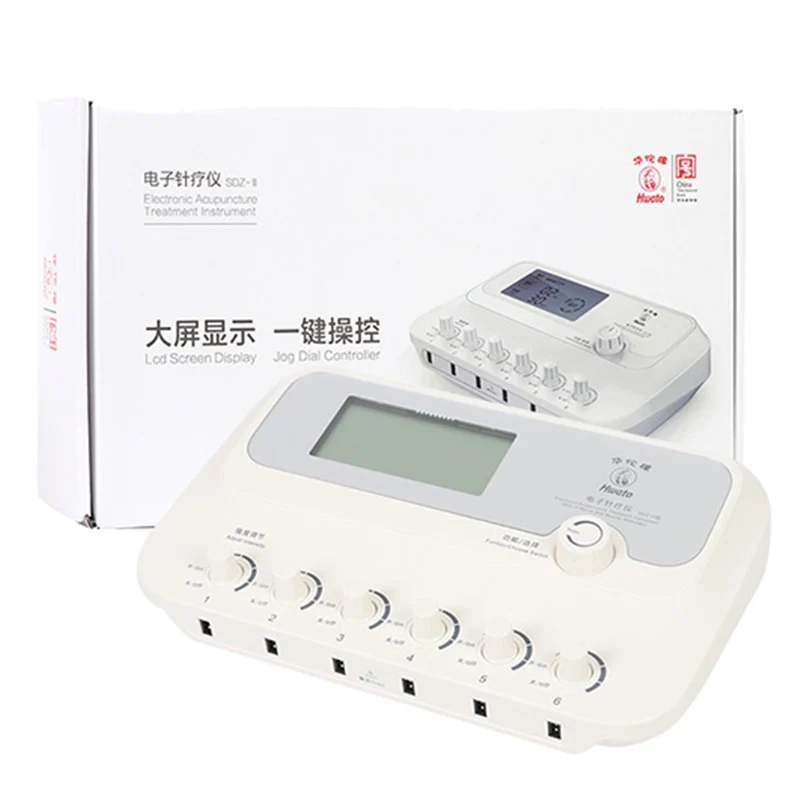

1 X SDZ-III Main machine
6 X Output wire
6 X Needle electrode metal clip
6 X Skin electrodes
1 X Power adapter
1 X English Manual

Application:
1. Improve the sleep quality
2. Eliminating physical fatigue caused by long-time work
3. Cleaning meridian relaxing muscles and joints
4. Pain relief enhance human immunity
5. Stay away from the sub-health
6. Enhancing circulation system of body
